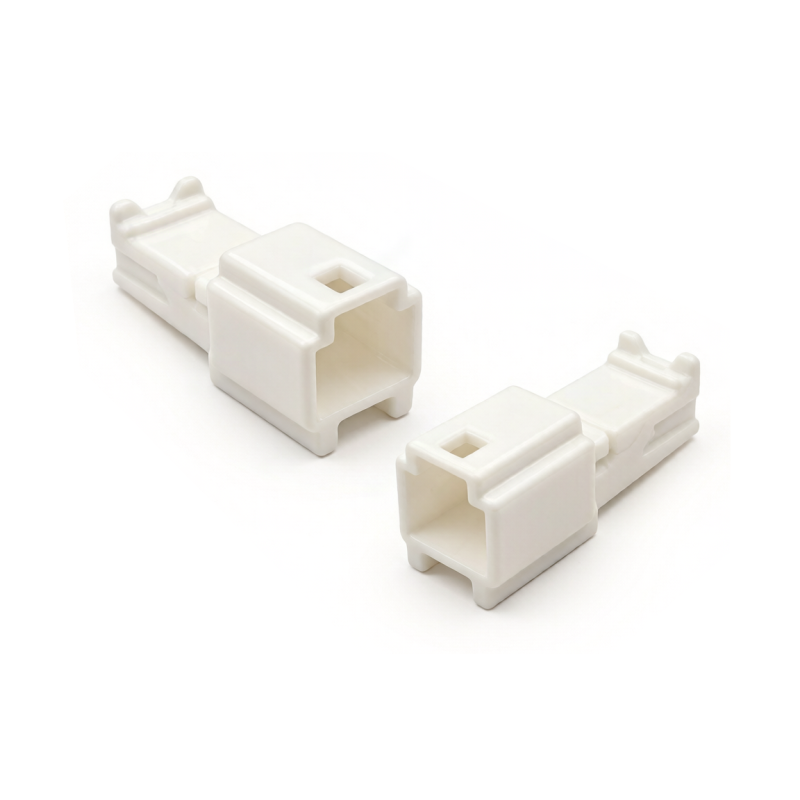

[6098-5271] 2.2Pitch 8P Female Housing

Specifications

Material

Package Type

tape and reel‌、 ‌tube packaging‌、Tape and Reel Package

Note For Wafer Connectors, FPC Connectors, FAKRA Connectors, and HSD Connectors, please contact customer service to confirm the final packaging method based on product specifications, size, and quantity requirements.

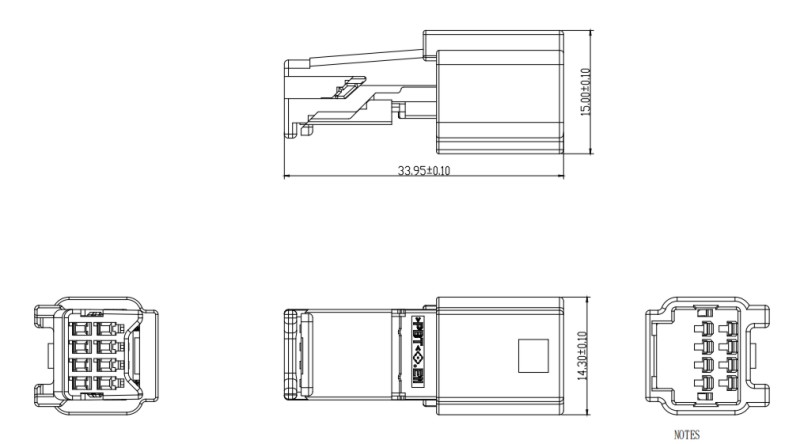

Drawing/Model

Product Features

This 2.2 Pitch 8P Female Housing features a compact single-row cavity layout with a locking ramp mechanism that securely retains each crimped terminal in its designated position, preventing contact displacement during handling and operation under vibration conditions. The housing body is molded from flame-retardant nylon meeting UL94 V-0 requirements, providing self-extinguishing properties that enhance safety in enclosed electronic assemblies where multiple components operate in close proximity. Terminal cavities incorporate chamfered entry surfaces that guide contacts smoothly into position during insertion, reducing assembly force and protecting contact surfaces from scratch damage. Polarization features on the mating interface prevent incorrect orientation during connection, safeguarding against potential damage from reverse insertion attempts that could bend contacts or crack the housing. A natural housing finish facilitates visual inspection of terminal seating during quality control processes. The low-profile design minimizes the connector's footprint on mounting panels, allowing efficient use of available space in compact equipment enclosures. Optional color-coding supports circuit identification strategies in multi-connector installations.

Application Scenarios

The 2.2 Pitch 8P Female Housing provides cable-side connectivity for automotive dome light assemblies and vanity mirror lamp modules, connecting power supply and switched ground conductors for simple interior lighting circuits that must operate reliably throughout the vehicle's service life. Consumer electronics devices such as smart speakers, streaming media players, and network routers incorporate this housing for internal wiring connections between power supply boards and main processing units where a small number of circuits must be organized efficiently. Small household appliances including bathroom exhaust fans, range hoods, and humidifiers use it for linking switch panels to motor controllers through compact connector interfaces. In industrial settings, the housing connects limit switch arrays and indicator lamp circuits to equipment control panels through a compact and serviceable connector that simplifies installation and maintenance. The eight-circuit capacity is well-suited for applications requiring a small number of connections without the overhead of larger connector systems. Female cavity design provides secure crimp terminal retention while enabling convenient disconnection for maintenance or component replacement.

Why Choose [6098-5271] 2.2Pitch 8P Female Housing - Quality Wire-to-Board Connector

• Quality wire-to-board design of this 2.2Pitch 8P Female Housing provides accurate header mating with stable contact geometry for reliable board-level transmission.

• Secure locking engagement of this Quality 8P Female Housing with headers prevents harness disconnection, critical for sub-modules and industrial sensor board applications.

• Precision seating geometry of this 2.2Pitch 8P Female Housing minimizes resistance variation, delivering consistent electrical performance across all positions.

• Compatible with standard crimp terminals and PCB pin headers in the pitch family, this Quality 8P Female Housing supports flexible board integration design.

• Manufactured to quality standards with available technical support, this 8P Wire-to-Board Female Housing enables fast qualification for automotive and industrial boards.
