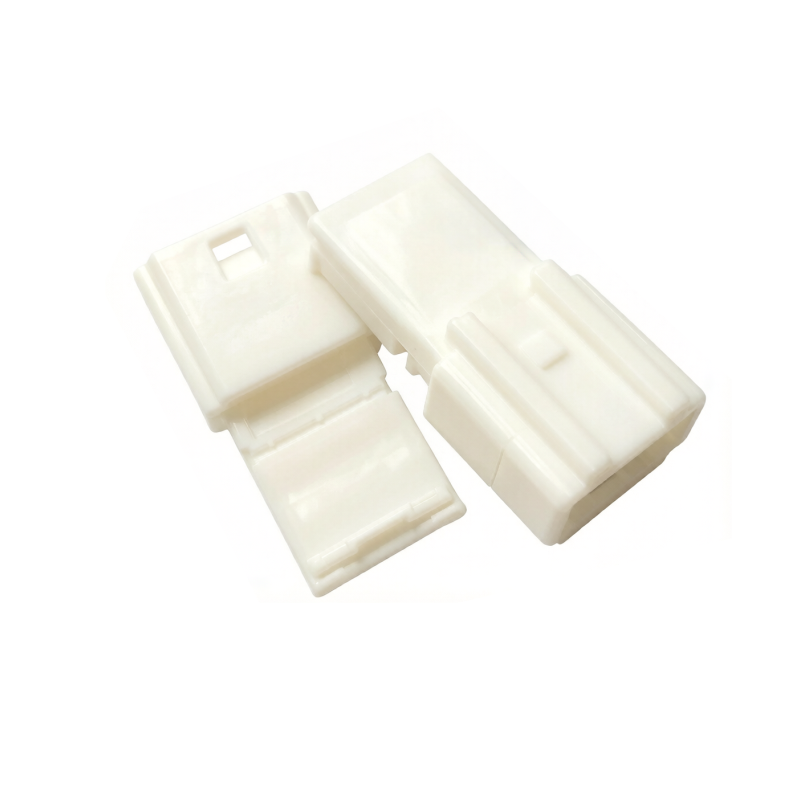

[6098-5277] 2.2Pitch 12P Female Housing

Specifications

Material

Package Type

tape and reel‌、 ‌tube packaging‌、Tape and Reel Package

Note For Wafer Connectors, FPC Connectors, FAKRA Connectors, and HSD Connectors, please contact customer service to confirm the final packaging method based on product specifications, size, and quantity requirements.

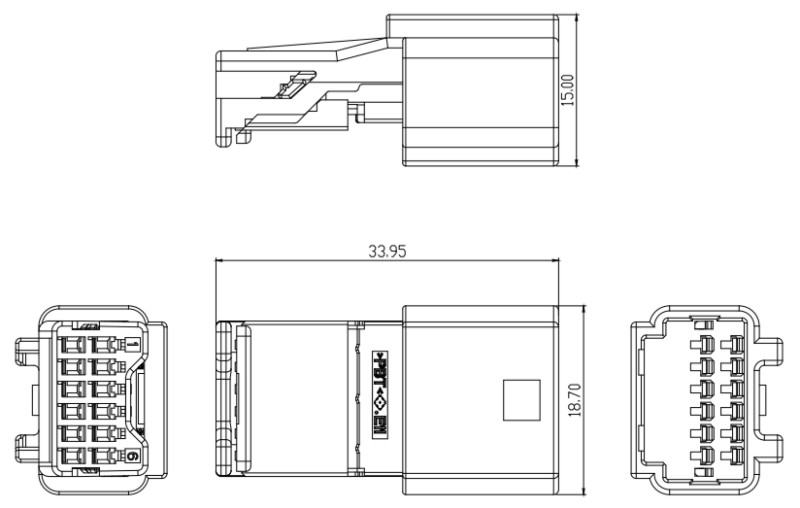

Drawing/Model

Product Features

This 2.2 Pitch 12P Female Housing features a compact dual-row layout with a locking ramp mechanism that retains crimped terminals firmly in their designated cavities, preventing contact displacement during handling and operation under vibration conditions. The housing body is manufactured from UL94 V-0 rated material, meeting flammability requirements for electronic equipment across automotive and industrial sectors where fire safety compliance is mandatory. Terminal cavities incorporate chamfered entry guides that facilitate smooth terminal insertion during harness assembly, reducing the force required and minimizing the risk of contact damage from misaligned insertion attempts. Polarization features on the mating interface prevent incorrect pairing with male housings, eliminating a common source of assembly defects and potential equipment damage that could result from cross-mated connectors. A low-profile design minimizes the connector's protrusion into adjacent wire routing channels, facilitating neat and efficient harness packaging within equipment enclosures. The natural housing finish supports visual inspection of terminal seating during manufacturing quality control processes and field maintenance operations.

Application Scenarios

The 2.2 Pitch 12P Female Housing provides cable-side connectivity for automotive window lift switch modules and mirror adjustment controllers, organizing the multiple switch input and motor drive conductors within a compact twelve-circuit connector that simplifies harness routing in door panel assemblies where space is shared with window regulators and speaker modules. Industrial handheld power tools incorporate this housing for connecting battery packs, motor controls, and safety interlock circuits within the tool's handle assembly where space constraints demand compact yet reliable interconnect solutions. Commercial coffee brewing equipment uses it for linking brew group sensors, heating element controllers, and user interface panels to the main control board through a serviceable connector that facilitates field repair and component replacement. In agricultural monitoring systems, the housing connects soil moisture probes and weather station sensors to data logging equipment through environmentally sealed connector assemblies that must operate reliably in outdoor exposure conditions year-round. The female cavity design provides reliable terminal retention while allowing convenient disconnection for field service or component replacement without specialized tools.

Why Choose [6098-5277] 2.2Pitch 12P Female Housing

• Compact 12-position female housing of this 2.2Pitch 12P Female Housing efficiently accommodates moderate circuit count in sensor connectors and control wiring applications.

• Positive locking design of this 12P Female Housing maintains secure mating under vibration and cycling, preventing intermittent contact in safety-relevant circuits.

• Engineering plastic construction of this 2.2Pitch 12P Female Housing resists humidity, ensuring consistent housing dimensions and retention across service conditions.

• Standard pitch of this 12P Female Housing ensures compatibility with available crimp terminals and complementary housings, simplifying harness design and sourcing.

• Field-proven performance in harness assemblies, this 2.2Pitch 12P Wire End Female Housing has professional technical support and reliable volume supply availability.
