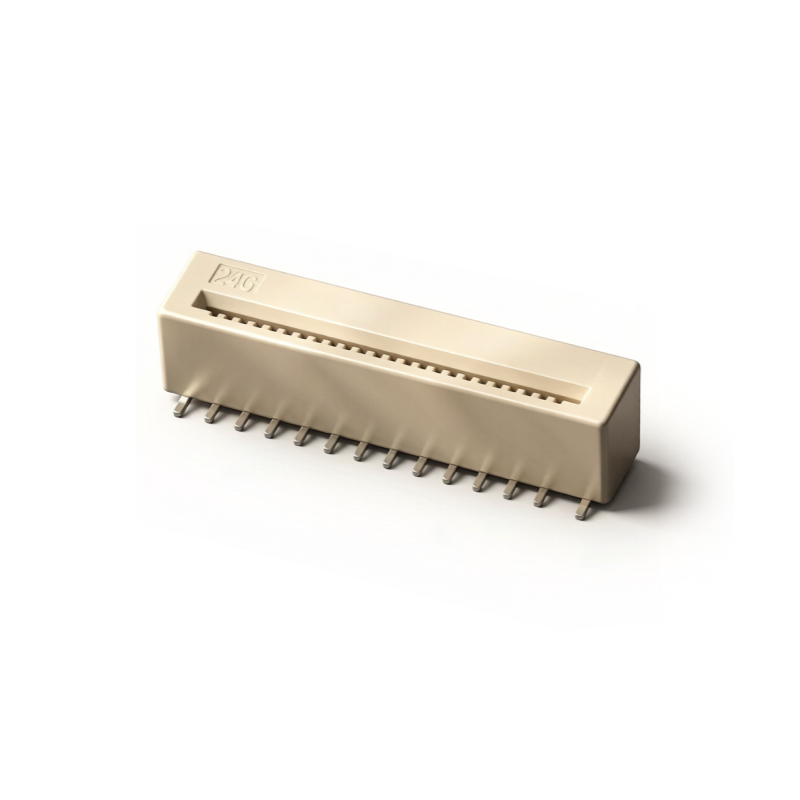

0.5mm Pitch FPC Non-ZIF Non-Lock Vertical SMT Connector

Specifications

Material

Package Type

tape and reel‌、 ‌tube packaging‌、Tape and Reel Package

Note For Wafer Connectors, FPC Connectors, FAKRA Connectors, and HSD Connectors, please contact customer service to confirm the final packaging method based on product specifications, size, and quantity requirements.

Drawing/Model

Product Features

The 0.5mm Pitch FPC Non-ZIF Non-Lock Vertical SMT Type features a simplified contact structure that eliminates both the ZIF slider and the flip or slide lock, reducing part count and overall profile height. The connector uses phosphor bronze contacts to deliver stable signal transmission with contact resistance typically 20mΩ or below, while the LCP housing rated UL94 V-0 can support operating temperatures from -40°C up to +105°C. Its vertical SMT orientation enables the FPC to plug in at a right angle to the board surface, which is especially useful when horizontal space is limited. SMT solder tabs help keep the connector firmly attached during assembly and日常 handling. Without a locking mechanism, the 0.5mm Pitch FPC Non-ZIF Non-Lock Vertical SMT Type depends on friction fit between the contacts and the inserted cable, making it a straightforward choice for applications where the cable remains mostly stationary after installation. Insulation resistance of 100MΩ or greater adds another layer of electrical reliability.

Application Scenarios

In portable consumer devices such as smartphones, tablets, and wearable gadgets, the 0.5mm Pitch FPC Non-ZIF Non-Lock Vertical SMT Type provides a low-profile internal link between display modules and main circuit boards. Its vertical orientation helps engineers route connections in narrow enclosures where horizontal space is at a premium, and the friction-fit contact design keeps assembly steps simple on high-volume production lines.

Industrial control panels and medical monitoring equipment also benefit from this compact connector. When a device needs a reliable but small-scale board-to-flex connection that stays mostly undisturbed after assembly, the 0.5mm Pitch FPC Non-ZIF Non-Lock Vertical SMT Type offers a practical fit — its SMT mounting holds firm against moderate vibration, and the wide operating temperature range from -40°C up to +105°C covers typical factory-floor and clinical environments.

For automotive infotainment sub-systems and in-cabin displays, space constraints and weight reduction are ongoing priorities. The vertical SMT design addresses both needs, and Shenzhen Jinkeji Electronics Co., Ltd. supplies this connector series with consistent quality to support automotive-grade signal integrity in compact modules.

Why Choose 0.5mm Pitch FPC Non-ZIF Non-Lock Vertical SMT Connector

• Reliable Non-ZIF Solution

  Shenzhen Jinkeji Electronics Co., Ltd. offers a complete range of FPC connector solutions including non-ZIF types. Our non-lock design provides cost-effective solutions for applications where ZIF is not required.

• Cost-Effective Manufacturing

  Over 20 years of manufacturing experience enables us to optimize production efficiency and deliver cost-effective connector solutions without compromising quality.

• Broad Product Portfolio

  From ZIF to non-ZIF, from 0.5mm to 1.25mm pitch, JKJ offers a complete FPC connector portfolio. One-stop sourcing simplifies your supply chain management.

• Responsive Technical Support

  Our engineering team provides application support and design guidance. We work closely with customers to ensure the optimal connector selection for your specific application.

•  Certified Quality System

  IATF 16949 and ISO 9001 certified manufacturing process ensures consistent product quality. Every connector is tested and verified before shipment.
