1.0A Horizontal SMT Pin Header

Specifications

Material

Package Type

tape and reel‌、 ‌tube packaging‌、Tape and Reel Package

Note For Wafer Connectors, FPC Connectors, FAKRA Connectors, and HSD Connectors, please contact

customer service to confirm the final packaging method based on product specifications, size, and quantity requirements.

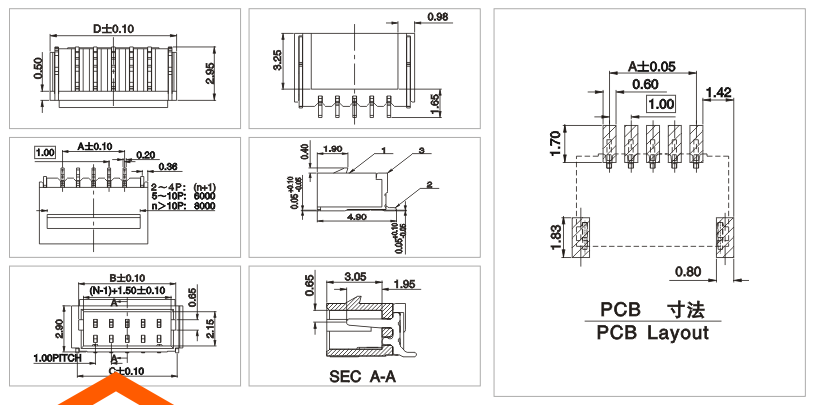

Drawing/Model

Product Features

Precision SMT Design — The 1.0A Horizontal SMT Pin Header is manufactured to tight dimensional tolerances, ensuring consistent coplanarity for reliable solder joint formation during reflow processing. This reduces soldering defects and improves first-pass yield in high-volume production, making it ideal for automated SMT assembly lines.

Horizontal SMT Termination — Its low-profile horizontal mounting configuration supports efficient PCB space utilization and is compatible with standard lead-free reflow profiles, enabling tighter PCB layouts and simplified thermal management. The surface-mount design eliminates the need for through-hole drilling, reducing processing steps and production costs.

Rated Electrical Performance — Rated at 1.0A per contact, the 1.0A Horizontal SMT Pin Header delivers stable signal and power transmission across a wide operating temperature range of -40°C to +105°C. The high-temperature insulator, made from LCP or PA6T UL94V-0 material, withstands lead-free reflow without deformation, ensuring consistent performance in thermally demanding applications such as automotive electronics and industrial control systems.
