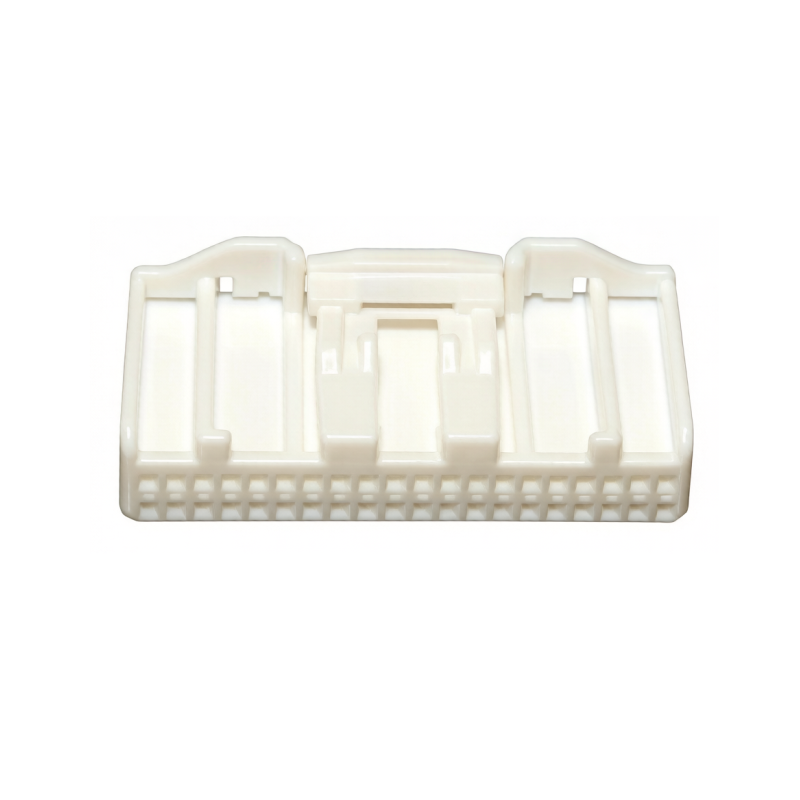

[1318389-1] 2.2Pitch 40P Wire End Male Housing

Specifications

Material

Package Type

tape and reel‌、 ‌tube packaging‌、Tape and Reel Package

Note For Wafer Connectors, FPC Connectors, FAKRA Connectors, and HSD Connectors, please contact customer service to confirm the final packaging method based on product specifications, size, and quantity requirements.

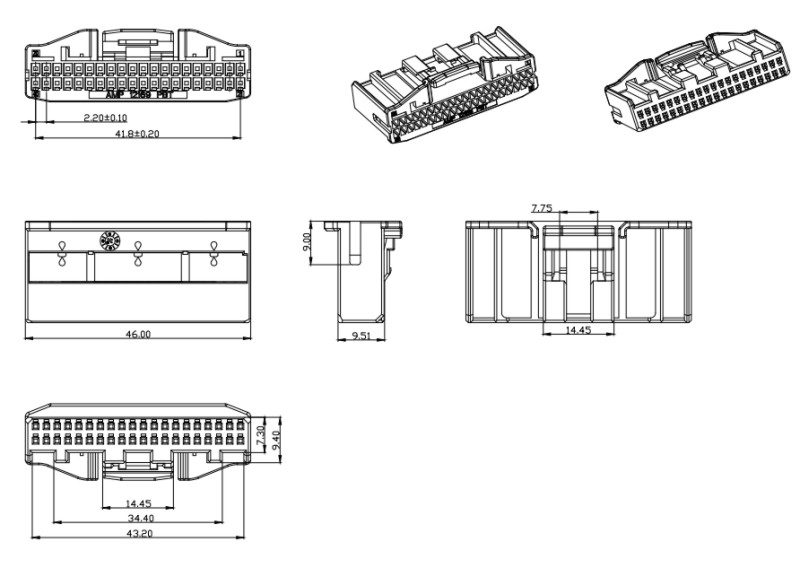

Drawing/Model

Product Features

This 2.2 Pitch 40P Wire End Male Housing features a dual-row contact arrangement with a central locking ramp that provides secure retention when mated with the corresponding female board connector, resisting disengagement from vibration and mechanical stress encountered in vehicle and industrial equipment operation. The housing is manufactured from high-temperature-resistant thermoplastic, enabling it to withstand soldering and overmolding processes encountered during harness production without warping or losing dimensional accuracy that could affect mating performance. Terminal retention is enhanced by a secondary lock feature that can be engaged after all terminals are seated, providing an additional safeguard against contact back-out in vibration-intensive applications such as off-highway vehicles and heavy industrial machinery. The compact envelope dimensions allow dense wiring within harness bundles, an important consideration in modern vehicle architectures where routing space is increasingly constrained by other vehicle systems. A keying system molded into the mating interface prevents mismating between connectors with identical cavity counts but different circuit assignments. Cavity identification markings on the housing exterior facilitate accurate wire routing during harness fabrication.

Application Scenarios

The 2.2 Pitch 40P Wire End Male Housing provides a high-density cable-side connection point for automotive gateway modules and telematics units that aggregate CAN bus, LIN bus, and automotive Ethernet signals from multiple vehicle sub-networks into a central communication hub. Its forty circuit positions enable comprehensive wiring of data communication lines, power supply feeds, and diagnostic interface connections through a single organized connector that simplifies harness routing and reduces overall vehicle wiring weight. Industrial programmable logic controller systems employ this housing for I/O expansion racks, connecting remote field devices such as analog and digital I/O modules to central processing units across factory automation networks. Medical imaging equipment manufacturers utilize it for routing control and data acquisition signals between rotating gantry electronics and stationary processing units in computed tomography and magnetic resonance imaging systems. The connector's high pin count reduces the total number of individual connectors required in a system, simplifying harness architecture, reducing assembly time, and lowering the probability of connection-related failures.

Why Choose [1318389-1] 2.2Pitch 40P Wire End Male Housing

• High-density 40-pin configuration of this 2.2Pitch 40P Male Housing consolidates extensive wiring into one interface, simplifying routing and reducing assembly connector count.

• Male plug of this 40P Male Housing mates securely with corresponding female housings, forming a robust connection resistant to automotive vibration and shock.

• Compatible with the full range of pitch terminals, this 2.2Pitch Male Housing enables flexible conductor sizing and optimization across different current requirements.

• Compact footprint relative to circuit count of this 40P Male Housing improves packaging density, ideal for ECU and complex control module wiring interfaces.

• Broad industry adoption provides a proven track record, with available application support and consistent supply of this 2.2Pitch 40P Male Housing for manufacturing.
