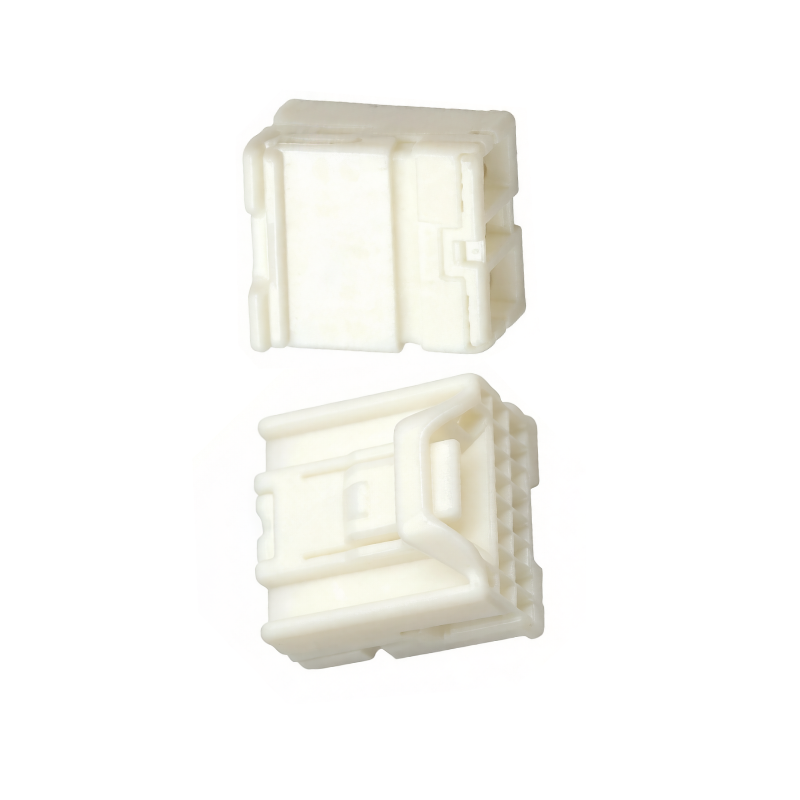

[6098-5281] 2.2Pitch 16P Female Housing

Specifications

Material

Package Type

tape and reel‌、 ‌tube packaging‌、Tape and Reel Package

Note For Wafer Connectors, FPC Connectors, FAKRA Connectors, and HSD Connectors, please contact customer service to confirm the final packaging method based on product specifications, size, and quantity requirements.

Drawing/Model

Product Features

This 2.2 Pitch 16P Female Housing features a dual-row cavity configuration with a central locking ramp that provides positive terminal retention in each designated position, preventing contact displacement during handling and operation under vibration conditions. The housing is manufactured from flame-retardant thermoplastic meeting automotive material specifications, ensuring self-extinguishing behavior and dimensional stability under thermal stress encountered in vehicle interior environments with significant temperature fluctuations. A secondary lock mechanism is available as an optional insert, providing an additional layer of terminal retention assurance for applications subjected to severe vibration or repeated mechanical shock such as off-road vehicles and heavy industrial equipment. Polarization features on the mating interface prevent incorrect pairing with male housings of similar appearance but different circuit assignments, eliminating a common source of assembly defects and potential equipment damage. The compact overall dimensions allow efficient use of available panel space while still providing adequate clearance for wire routing and ergonomic assembly operations. Natural and color-coded housing variants support visual identification strategies that reduce assembly errors.

Application Scenarios

The 2.2 Pitch 16P Female Housing is utilized in automotive interior lighting and ambient illumination modules, connecting multi-channel LED driver outputs and dimming control signals within the vehicle cabin to create customizable lighting environments that enhance occupant comfort and brand identity. Industrial sensor hub assemblies employ this housing for aggregating signals from distributed proximity, temperature, and pressure sensors before transmission to the central processing unit, reducing the number of individual cable runs required between field devices and control equipment. Commercial refrigeration systems use it for organizing compressor control, defrost heater, and temperature monitor wiring within the equipment control compartment where reliable connections must be maintained despite temperature extremes and condensation. In laboratory automation, the housing links sample transport mechanisms to motion controller boards through a reliable separable connection that allows periodic maintenance access without permanent wire disconnection. Compact dimensions allow multiple housings to be mounted in close proximity on connector panels, supporting modular system architectures that require multiple grouped connections within a limited panel area.

Why Choose [6098-5281] 2.2Pitch 16P Female Housing

• 16-position receptacle of this 2.2Pitch 16P Female Housing delivers reliable multi-circuit connectivity in a compact, easy-to-handle connector form factor.

• Terminal retention structure of this 16P Female Housing secures contacts firmly, preventing pullout during handling and ensuring stable electrical performance in operation.

• Positive locking engagement of this Wire End 16P Female Housing with the male housing resists disconnection under stress in automotive and industrial conditions.

• Pitch standard of this 2.2Pitch 16P Female Housing aligns with broad market availability, supporting cost-effective and flexible component procurement strategies.

• Widely used with proven reliability, this 2.2Pitch 16P Female Housing has technical service and stable supply available for program manufacturing needs.
