57、GT17HNS2-4DS-2C(A-D)
Specifications
| Current Rating： | Insulation Resistance： |
| Voltage Rating： | Withstand Voltage： |
| Contact Resistance： | Operating Temperature Range： |
Material
| Plastic material： | Terminal material： |
Package Type
tape and reel、 tube packaging、Tape and Reel Package
Note For Wafer Connectors, FPC Connectors, FAKRA Connectors, and HSD Connectors, please contact customer service to confirm the final packaging method based on product specifications, size, and quantity requirements.

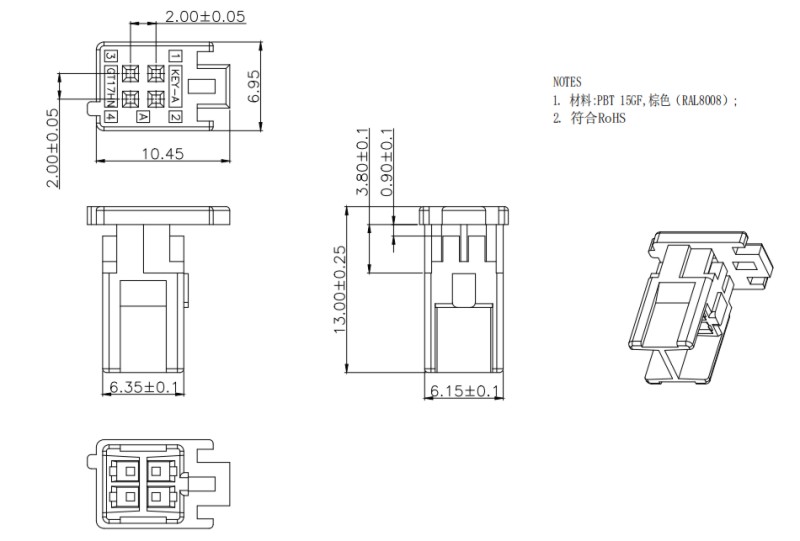

Drawing/Model
![[GT17HNS2-4DS-2C(A-D)] GT17 Cable End 4P Plastic Core from China manufacturer - Connector](http://iororwxhimpllk5p-static.micyjz.com/cloud/pnBpkKlmliSRqlkrnrokkq/57.jpg "GT17 Cable End 4P Plastic Core")
Product Features
The GT17 Cable End 4P Plastic Core (commonly referred to as the housing or insulator in datasheets) is a critical component within the modular GT17 series connector system designed for high-speed automotive applications. Its design and material properties are integral to the connector's overall performance and reliability.
Furthermore, the plastic core works in conjunction with other components like the center terminal and outer terminal to form the complete connector. The design often incorporates features for contact retention and audible latching, providing tactile and auditory confirmation of a secure connection, which is vital for quality control in high-volume automotive wire harness manufacturing. As part of the GT17 series' all-surface shielded construction, this plastic core contributes to the connector's ability to support high-speed data protocols like USB for in-car communications and multimedia systems by providing necessary insulation and structural support for the shielding elements.
Application Scenarios
The GT17 Cable End 4P Plastic Core is a critical component within the modular GT17 series connector system, primarily designed for high-speed data transmission in automotive applications. Its core application is to serve as the insulator and housing for the center terminals in a 4-position cable-end connector assembly, specifically engineered for protocols like USB 2.0 and LVDS used in in-car communication and multimedia systems. This plastic core, typically molded from high-performance Polybutylene Terephthalate (PBT), provides essential electrical insulation and structural integrity. A key application feature is its integrated polarizing keyway and color-coding system, which prevents incorrect mating with incompatible connectors during the assembly of complex automotive wire harnesses, ensuring reliability and efficiency on high-volume production lines. As part of the GT17 series' all-surface shielded construction, this component is fundamental in enabling robust and interference-free data links that are vital for modern vehicle electronics.
Why Choose GT17HNS2-4DS-2C(A-D) GT17 Cable End 4P Plastic Core
Automotive-grade GT17 designed to withstand extreme conditions and vibrations.
Available in tape-and-reel packaging for high-speed SMT assembly production.
Factory-direct GT17 with competitive pricing and reliable supply chain.

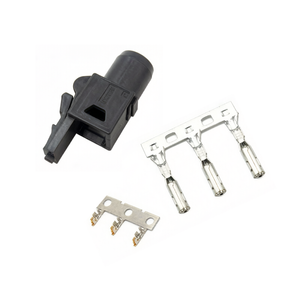

![[GT17HNS2-4DS-2C(A-D)] GT17 Wire End Terminal](http://iororwxhimpllk5p-static.micyjz.com/cloud/liBpkKlmliSRoljpkkplkp/56-GT17HNS2-4DS-2C-A-D-640-640.png "[GT17HNS2-4DS-2C(A-D)] GT17 Wire End Terminal")
