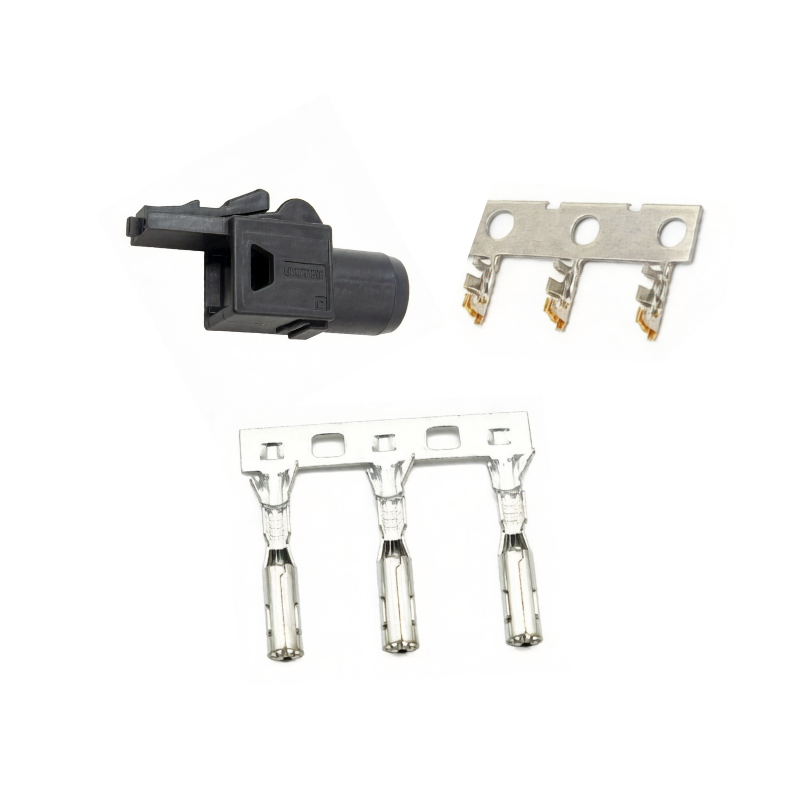

[GT17HNS2-4DS-2C(A-D)] GT17 Wire End Bushing

Specifications

Material

Package Type

tape and reel‌、 ‌tube packaging‌、Tape and Reel Package

Note For Wafer Connectors, FPC Connectors, FAKRA Connectors, and HSD Connectors, please contact customer service to confirm the final packaging method based on product specifications, size, and quantity requirements.

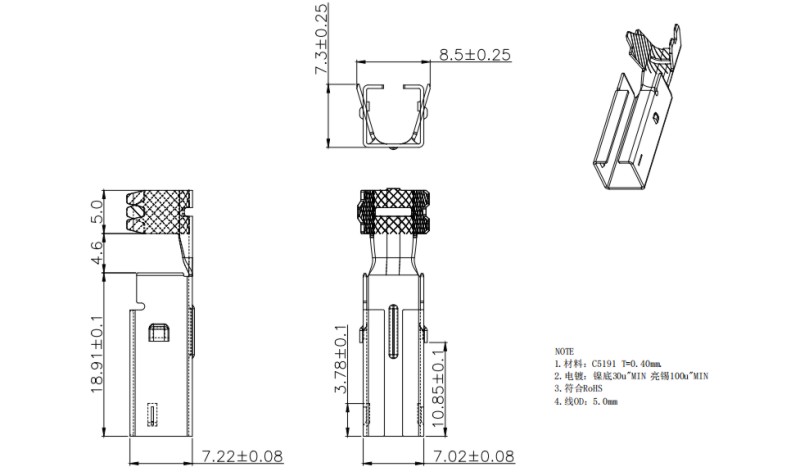

Drawing/Model

Product Features

The GT17 wire end terminal features a precision-stamped and formed contact geometry, specifically designed for high-speed automatic crimping on standard applicator equipment. Its surface plating ensures excellent solderability, making it suitable for mainstream soldering processes, while also providing adequate corrosion protection for indoor storage between assembly operations.

The terminal's robust box-style multi-point contact structure guarantees reliable electrical performance when properly crimped onto the corresponding wire gauge, maintaining contact resistance at a very low level. It is supplied in an industry-standard strip-form packaging on reels, which perfectly adapts to high-speed application equipment and meets the high-cycle production demands of automotive wire harness lines that process thousands of terminals per hour.

Each terminal possesses a substantial continuous current-carrying capacity and offers good dielectric withstanding voltage between adjacent pins within the connector housing, meeting the safety requirements of conventional applications.

Application Scenarios

The GT17 terminal connects small-gauge wires in automotive body control modules that manage dozens of convenience functions including power window switches, mirror adjustment motors, power door locks, and LED interior lighting throughout the vehicle. Automatic crimping equipment processes these terminals at high throughput on modern wire harness production lines that may terminate thousands of wires per hour across multiple production shifts. Consistent crimp height ensures stable contact resistance in low-current signal circuits where voltage drops from high-resistance connections could cause intermittent operation of sensitive electronic controls. The box-style contact geometry prevents terminal deformation during insertion into housing cavities, eliminating a common defect that would require reworking the affected wire at significant labor cost. Multiple plating options including tin, selective gold, and full gold allow engineers to optimize connector cost versus performance for specific circuit requirements across different trim levels and market segments.

Why Choose

• High-speed GT17 optimized for fast signal transmission with minimal loss.

• Stable GT17 with consistent contact resistance below 20 milliohms.

• Factory-direct GT17 with competitive pricing and reliable supply chain.
