0.5mm FPC Connector Flip-type Bottom Contact Height 2.0mm

Specifications

Material

Package Type

tape and reel‌、 ‌tube packaging‌、Tape and Reel Package

Note For Wafer Connectors, FPC Connectors, FAKRA Connectors, and HSD Connectors, please contact customer service to confirm the final packaging method based on product specifications, size, and quantity requirements.

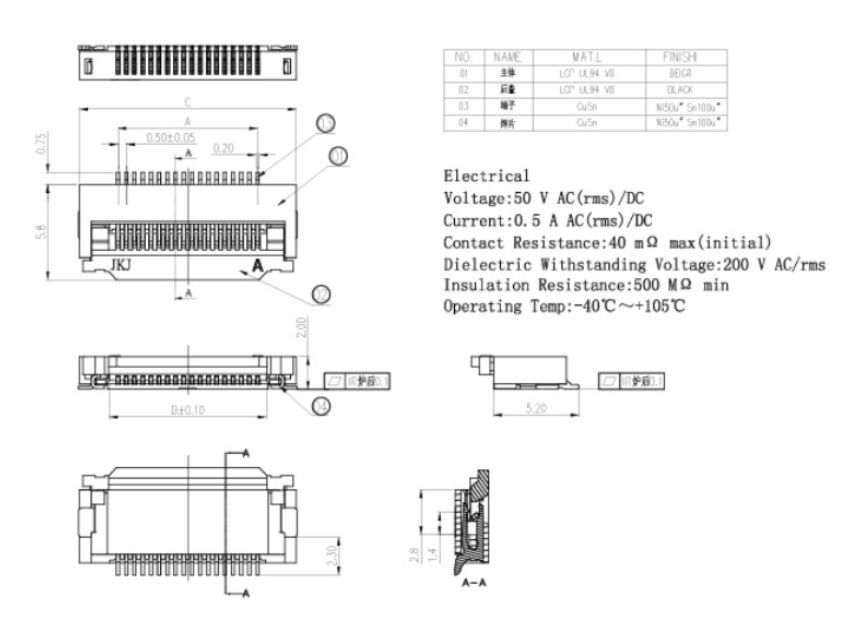

Drawing/Model

Product Features

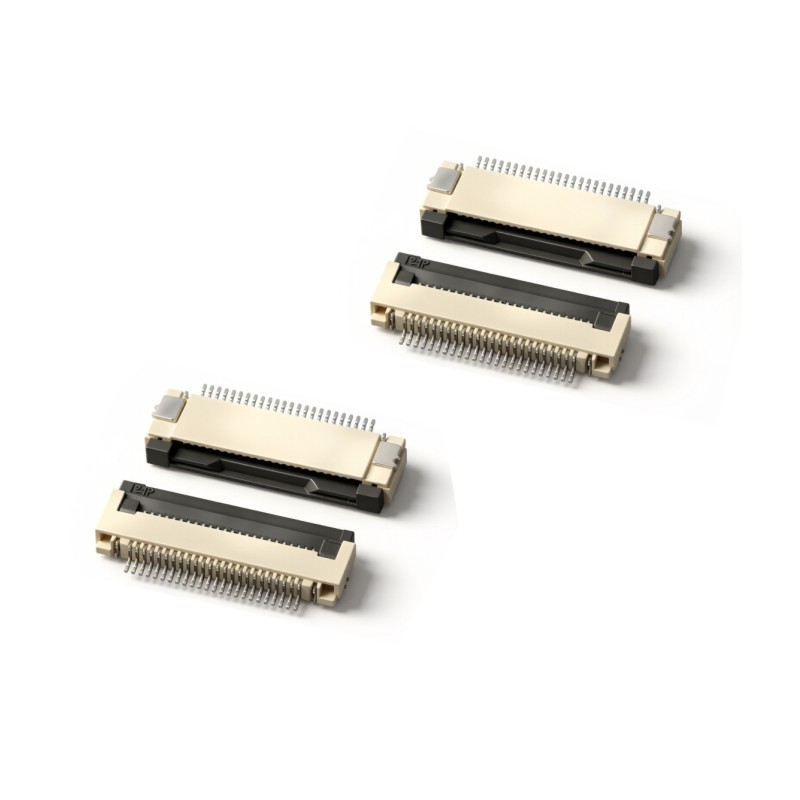

The 0.5mm pitch FPC connector with flip-type bottom contact design delivers exceptional performance for high-density flexible circuit applications. The compact 2.0mm profile enables space-constrained device integration while maintaining signal integrity. The flip-type actuator provides secure cable retention with smooth operation, ensuring consistent contact force throughout the product lifecycle. Gold-plated contacts deliver low contact resistance and superior corrosion resistance, making this connector suitable for demanding environments. The bottom contact configuration optimizes PCB layout flexibility and simplifies mating with standard FPC cables. Enhanced EMI shielding options are available for noise-sensitive applications. The connector supports high-speed data transmission protocols and maintains signal quality across the operating temperature range. Precision mold design ensures accurate alignment and prevents mis-mating. The robust housing material provides excellent mechanical strength and thermal stability. Compatible with automated pick-and-place equipment for efficient mass production. Optional positioning features facilitate proper FPC insertion and alignment. The connector meets industry standard specifications for FPC/FFC interconnection systems. The design incorporates advanced features to minimize insertion force while maintaining secure retention. The connector is compatible with various FPC cable thicknesses and maintains reliable performance in demanding applications. Comprehensive testing ensures long-term reliability and consistent electrical performance across all operating conditions.

Application Scenarios

Smartphones and mobile communication devices benefit from the compact size and reliable performance of this FPC connector. Tablet computers and ultrabooks utilize this connector for display and touch panel connections. Wearable electronics and smartwatches require the space-efficient design for internal flexible circuit routing. Digital cameras and imaging systems employ this connector for sensor and display interconnections. Medical devices and portable diagnostic equipment rely on the secure connection for critical signal transmission. Automotive infotainment systems and navigation displays use this connector for high-speed data transfer. Industrial automation equipment and control systems incorporate this connector for flexible circuit applications. Gaming consoles and virtual reality headsets benefit from the high-density interconnection capability. IoT devices and smart home products utilize this connector for compact internal connections. Telecommunications equipment employs this connector for reliable signal transmission in base station applications. The connector is also suitable for automotive advanced driver assistance systems requiring reliable flexible circuit connections.

Why Choose 0.5mm FPC Connector Flip-type Bottom Contact Height 2.0mm

1. JINKEJI provides this high-quality 0.5mm FPC connector with superior engineering and manufacturing precision.

2. Our flip-type bottom contact design ensures reliable performance in space-constrained applications.

3. We maintain strict quality control throughout production to deliver consistent product performance.

4. Our technical team offers comprehensive support for integration and application guidance.

5. Choose JINKEJI for reliable interconnect solutions backed by industry expertise and customer-focused service.
